In this project I delved into the field of Computer Vision. I built & optimized a Convolutional Neural Network to classify images of politicians to try myself out in this field.
Table of contents
- 00. Project Overview
- 01. Data Overview
- 02. Data Pipeline
- 03. CNN Overview
- 04. Baseline Network
- 05. Tackling Overfitting With Dropout
- 06. Image Augmentation
- 07. Hyper-Parameter Tuning
- 08. Transfer Learning
- 09. Overall Results Discussion
- 10. Next Steps & Growth
Project Overview
Actions
We utilise the Keras Deep Learning library for this task.
We start by creating our pipeline for feeding training & validation images in batches, from our local directory, into the network. We investigate & quantify predictive performance epoch by epoch on the validation set, and then also on a held-back test set.
Our baseline network is simple, but gives us a starting point to refine from. This network contains 2 Convolutional Layers, each with 32 filters and subsequent Max Pooling Layers. We have a single Dense (Fully Connected) layer following flattening with 32 neurons followed by our output layer. We apply the relu activation function on all layers, and use the adam optimizer.
Our first refinement is to add Dropout to tackle the issue of overfitting which is prevalent in the baseline network performance. We use a dropout rate of 0.5.
We then add in Image Augmentation to our data pipeline to increase the variation of input images for the network to learn from, resulting in a more robust results as well as also address overfitting.
With these additions in place, we utlise keras-tuner to optimise our network architecture & tune the hyperparameters. The best network from this testing contains 3 Convolutional Layers, each followed by Max Pooling Layers. The first Convolutional Layer has 96 filters, the second & third have 64 filters. The output of this third layer is flattened and passed to a single Dense (Fully Connected) layer with 160 neurons. The Dense Layer has Dropout applied with a dropout rate of 0.5. The output from this is passed to the output layer. Again, we apply the relu activation function on all layers, and use the adam optimizer.
Finally, we utilise Transfer Learning to compare our network’s results against that of the pre-trained VGG16 network.
Results
We have made some huge strides in terms of making our network’s predictions more accurate, and more reliable on new data.
Our baseline network suffered badly from overfitting - the addition of both Dropout & Image Augmentation elimited this almost entirely.
In terms of Classification Accuracy on the Test Set, we saw:
- Baseline Network: 70%
- Baseline + Dropout: 85%
- Baseline + Image Augmentation: 93%
- Optimised Architecture + Dropout + Image Augmentation: 95%
- Transfer Learning Using VGG16: 98%
Tuning the networks architecture with Keras-Tuner gave us a great boost, but was also very time intensive - however if this time investment results in improved accuracy then it is time well spent.
The use of Transfer Learning with the VGG16 architecture was also a great success, in only 10 epochs we were able to beat the performance of our smaller, custom networks which were training over 50 epochs. From a business point of view we also need to consider the overheads of (a) storing the much larger VGG16 network file, and (b) any increased latency on inference.
Data Overview
To build out this proof of concept, I reached out to Labelled Faces in the Wild, a publicly available data on Kaggle. This is made up of images of major global politicians out of which I selected four: Collin Powell, George W. Bush, Gerhard Schroeder, and Tony Blaire.
The images for each politician had been randomly split into training (approx. 60%), validation (approx. 30%) and test (approx. 10%) sets.
Examples of four images of each politician can be seen in the image below:
For ease of use in Keras, our folder structure first splits into training, validation, and test directories, and within each of those is split again into directories based upon the four politicians.
All images are of size 250 x 250 pixels.
Data Pipeline
Before we get to building the network architecture, & subsequently training & testing it - we need to set up a pipeline for our images to flow through, from our local hard-drive where they are located, to, and through our network.
In the code below, we:
- Import the required packages
- Set up the parameters for our pipeline
- Set up our image generators to process the images as they come in
- Set up our generator flow - specifying what we want to pass in for each iteration of training
# import the required python libraries
from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import Conv2D, MaxPooling2D, Activation, Flatten, Dense
from tensorflow.keras.preprocessing.image import ImageDataGenerator
from tensorflow.keras.callbacks import ModelCheckpoint
# data flow parameters
training_data_dir = 'data/training'
validation_data_dir = 'data/validation'
batch_size = 32
img_width = 128
img_height = 128
num_channels = 3
num_classes = 6
# image generators
training_generator = ImageDataGenerator(rescale = 1./255)
validation_generator = ImageDataGenerator(rescale = 1./255)
# image flows
training_set = training_generator.flow_from_directory(directory = training_data_dir,
target_size = (img_width, img_height),
batch_size = batch_size,
class_mode = 'categorical')
validation_set = validation_generator.flow_from_directory(directory = validation_data_dir,
target_size = (img_width, img_height),
batch_size = batch_size,
class_mode = 'categorical')
We specify that we will resize the images down to 128 x 128 pixels, and that we will pass in 32 images at a time (known as the batch size) for training.
To start with, we simply use the generators to rescale the raw pixel values (ranging between 0 and 255) to float values that exist between 0 and 1. The reason we do this is mainly to help Gradient Descent find an optimal, or near optional solution each time much more efficiently - in other words, it means that the features that are learned in the depths of the network are of a similar magnitude, and the learning rate that is applied to descend down the loss or cost function across many dimensions, is somewhat proportionally similar across all dimensions.
With this pipeline in place, the images will be extracted, in batches of 32, from the hard-drive.
Convolutional Neural Network Overview
Convolutional Neural Networks (CNN) are an adaptation of Artificial Neural Networks and are primarily used for image based tasks.
To a computer, an image is simply made up of numbers, those being the colour intensity values for each pixel. Colour images have values ranging between 0 and 255 for each pixel, but have three of these values, for each - one for Red, one for Green, and one for Blue.
These pixel values are the input for a Convolutional Neural Network. It needs to make sense of these values to make predictions about the image, for example, in our task here, to predict what the image is of, one of the four possible personalities.
The pixel values themselves don’t hold much useful information on their own - so the network needs to turn them into features much like we do as humans.
A big part of this process is called Convolution where each input image is scanned over, and compared to many different, and smaller filters, to compress the image down into something more generalised. This process not only helps reduce the problem space, it also helps reduce the network’s sensitivy to minor changes, in other words to know that two images are of the same object, even though the images are not exactly the same.
A somewhat similar process called Pooling is also applied to faciliate this generalisation even further. A CNN can contain many of these Convolution & Pooling layers - with deeper layers finding more abstract features.
Similar to Artificial Neural Networks, Activation Functions are applied to the data as it moves forward through the network, helping the network decide which neurons will fire, or in other words, helping the network understand which neurons are more or less important for different features, and ultimately which neurons are more or less important for the different output classes.
Over time - as a Convolutional Neural Network trains, it iteratively calculates how well it is predicting on the known classes we pass it (known as the loss or cost, then heads back through in a process known as Back Propagation to update the paramaters within the network, in a way that reduces the error, or in other words, improves the match between predicted outputs and actual outputs. Over time, it learns to find a good mapping between the input data, and the output classes.
Baseline Network
Network Architecture
Our baseline network is simple, but gives us a starting point to refine from. This network contains 2 Convolutional Layers, each with 32 filters and subsequent Max Pooling Layers. We have a single Dense (Fully Connected) layer following flattening with 32 neurons followed by our output layer. We apply the relu activation function on all layers, and use the adam optimizer.
# network architecture
model = Sequential()
model.add(Conv2D(filters = 32, kernel_size = (3, 3), padding = 'same', input_shape = (img_width, img_height, num_channels)))
model.add(Activation('relu'))
model.add(MaxPooling2D())
model.add(Conv2D(filters = 32, kernel_size = (3, 3), padding = 'same'))
model.add(Activation('relu'))
model.add(MaxPooling2D())
model.add(Flatten())
model.add(Dense(32))
model.add(Activation('relu'))
model.add(Dense(num_classes))
model.add(Activation('softmax'))
# compile network
model.compile(loss = 'categorical_crossentropy',
optimizer = 'adam',
metrics = ['accuracy'])
# view network architecture
model.summary()
The below shows us more clearly our baseline architecture:
Model: "sequential"
_________________________________________________________________
Layer (type) Output Shape Param #
=================================================================
conv2d (Conv2D) (None, 128, 128, 32) 896
_________________________________________________________________
activation (Activation) (None, 128, 128, 32) 0
_________________________________________________________________
max_pooling2d (MaxPooling2D) (None, 64, 64, 32) 0
_________________________________________________________________
conv2d_1 (Conv2D) (None, 64, 64, 32) 9248
_________________________________________________________________
activation_1 (Activation) (None, 64, 64, 32) 0
_________________________________________________________________
max_pooling2d_1 (MaxPooling2 (None, 32, 32, 32) 0
_________________________________________________________________
flatten (Flatten) (None, 32768) 0
_________________________________________________________________
dense (Dense) (None, 32) 1048608
_________________________________________________________________
activation_2 (Activation) (None, 32) 0
_________________________________________________________________
dense_1 (Dense) (None, 6) 198
_________________________________________________________________
activation_3 (Activation) (None, 6) 0
=================================================================
Total params: 1,058,950
Trainable params: 1,058,950
Non-trainable params: 0
_________________________________________________________________
Training The Network
With the pipeline, and architecture in place - we are now ready to train the baseline network!
In the below code we:
- Specify the number of epochs for training
- Set a location for the trained network to be saved (architecture & parameters)
- Set a ModelCheckPoint callback to save the best network at any point during training (based upon validation accuracy)
- Train the network and save the results to an object called history
# training parameters
num_epochs = 50
model_filename = 'models/presidents_cnn_v01.h5'
# callbacks
save_best_model = ModelCheckpoint(filepath = model_filename,
monitor = 'val_accuracy',
mode = 'max',
verbose = 1,
save_best_only = True)
# train the network
history = model.fit(x = training_set,
validation_data = validation_set,
batch_size = batch_size,
epochs = num_epochs,
callbacks = [save_best_model])
The ModelCheckpoint callback that has been put in place means that we do not just save the final network at epoch 50, but instead we save the best network, in terms of validation set performance - from any point during training. In other words, at the end of each of the 50 epochs, Keras will assess the performance on the validation set and if it has not seen any improvement in performance it will do nothing. If it does see an improvement however, it will update the network file that is saved on our hard-drive.
Analysis Of Training Results
As we saved our training process to the history object, we can now analyse the performance (Classification Accuracy, and Loss) of the network epoch by epoch.
import matplotlib.pyplot as plt
# plot validation results
fig, ax = plt.subplots(2, 1, figsize=(15,15))
ax[0].set_title('Loss')
ax[0].plot(history.epoch, history.history["loss"], label="Training Loss")
ax[0].plot(history.epoch, history.history["val_loss"], label="Validation Loss")
ax[1].set_title('Accuracy')
ax[1].plot(history.epoch, history.history["accuracy"], label="Training Accuracy")
ax[1].plot(history.epoch, history.history["val_accuracy"], label="Validation Accuracy")
ax[0].legend()
ax[1].legend()
plt.show()
# get best epoch performance for validation accuracy
max(history.history['val_accuracy'])

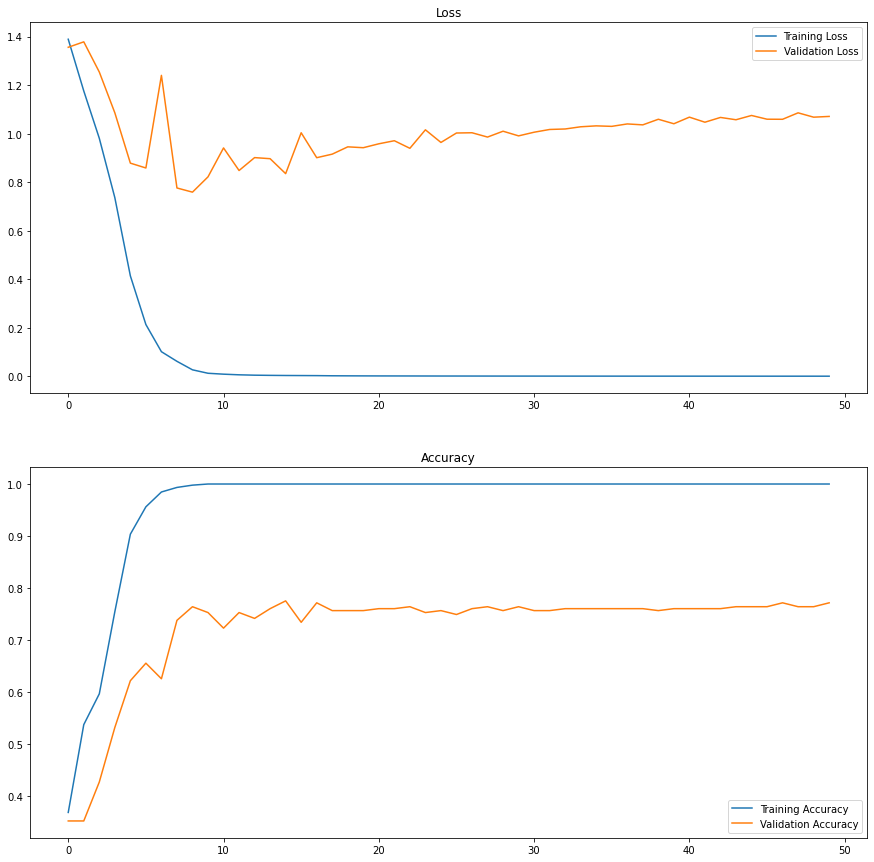

The below image contains two plots, the first showing the epoch by epoch Loss for both the training set (blue) and the validation set (orange) & the second show the epoch by epoch Classification Accuracy again, for both the training set (blue) and the validation set (orange).
There are two key learnings from above plots. The first is that, with this baseline architecture & the parameters we set for training, we are reaching our best performance in around 10 epochs - after that, not much improvement is seen.
The second thing to notice is very important and that is the significant gap between orange and blue lines on the plot, in other words between our validation performance and our training performance.
This gap is over-fitting.
Focusing on the lower plot above (Classification Accuracy) - it appears that our network is learning the features of the training data so well that after about 10 or so epochs it is perfectly predicting those images - but on the validation set, it never passes approximately 78% Classification Accuracy.
We do not want over-fitting! It means that we’re risking our predictive performance on new data. The network is not learning to generalize, meaning that if something slightly different comes along then it’s going to struggle to predict well, or at least predict reliably!
We will look to address this in the next sections.
Performance On The Test Set
Above, we assessed our models performance on both the training set and the validation set - both of which were being passed in during training. Here, we will get a view of how well our network performs when predict on data that was no part of the training process whatsoever - our test set.
A test set can be extremely useful when looking to assess many different iterations of a network we build. Where the validation set might be sent through the model in slightly different orders during training in order to assess the epoch by epoch performance, our test set is a static set of images.
In the below code we run this in isolation from training. We:
- Import the required packages for importing & manipulating our test set images
- Set up the parameters for the predictions
- Load in the saved network file from training
- Create a function for preprocessing our test set images in the same way that training & validation images were
- Create a function for making predictions, returning both predicted class label, and predicted class probability
- Iterate through our test set images, preprocessing each and passing to the network for prediction
- Create a Pandas DataFrame to hold all prediction data
# import required packages
from tensorflow.keras.models import load_model
from tensorflow.keras.preprocessing.image import load_img, img_to_array
import numpy as np
import pandas as pd
from os import listdir
# parameters for prediction
model_filename = 'models/presidents_cnn_v01.h5'
img_width = 128
img_height = 128
labels_list = ['Colin_Powell','George_W_Bush', 'Gerhard_Schroeder', 'Tony_Blair']
# load model
model = load_model(model_filename)
# image pre-processing function
def preprocess_image(filepath):
image = load_img(filepath, target_size = (img_width, img_height))
image = img_to_array(image)
image = np.expand_dims(image, axis = 0)
image = image * (1./255)
return image
# image prediction function
def make_prediction(image):
class_probs = model.predict(image)
predicted_class = np.argmax(class_probs)
predicted_label = labels_list[predicted_class]
predicted_prob = class_probs[0][predicted_class]
return predicted_label, predicted_prob
# loop through test data
source_dir = 'data/test/'
folder_names = ['Colin_Powell','George_W_Bush', 'Gerhard_Schroeder', 'Tony_Blair']
actual_labels = []
predicted_labels = []
predicted_probabilities = []
filenames = []
for folder in folder_names:
images = listdir(source_dir + '/' + folder)
for image in images:
processed_image = preprocess_image(source_dir + '/' + folder + '/' + image)
predicted_label, predicted_probability = make_prediction(processed_image)
actual_labels.append(folder)
predicted_labels.append(predicted_label)
predicted_probabilities.append(predicted_probability)
filenames.append(image)
# create dataframe to analyse
predictions_df = pd.DataFrame({"actual_label" : actual_labels,
"predicted_label" : predicted_labels,
"predicted_probability" : predicted_probabilities,
"filename" : filenames})
predictions_df['correct'] = np.where(predictions_df['actual_label'] == predictions_df['predicted_label'], 1, 0)
After running the code above, we end up with a Pandas DataFrame containing prediction data for each test set image. A random sample of this can be seen in the table below:
| actual_label | predicted_label | predicted_probability | filename | correct |
|---|---|---|---|---|
| Colin_Powell | Colin_Powell | 0.740108 | Colin_Powell_0028.jpg | 1 |
| George_W_Bush | George_W_Bush | 0.953529 | George_W_Bush_0356.jpg | 1 |
| George_W_Bush | Tony_Blair | 0.6504644 | George_W_Bush_0360.jpg | 0 |
| Gerhard_Schroeder | Colin_Powell | 0.980309 | Gerhard_Schroeder_0047.jpg | 0 |
In our data we have:
- Actual Label: The true label for that image
- Prediction Label: The predicted label for the image (from the network)
- Predicted Probability: The network’s perceived probability for the predicted label
- Filename: The test set image on our local drive (for reference)
- Correct: A flag showing whether the predicted label is the same as the actual label
This dataset is extremely useful as we can not only calculate our classification accuracy, but we can also deep-dive into images where the network was struggling to predict and try to assess why - leading to us improving our network, and potentially our input data!
Test Set Classification Accuracy
Using our DataFrame, we can calculate our overall Test Set classification accuracy using the below code:
# overall test set accuracy
test_set_accuracy = predictions_df['correct'].sum() / len(predictions_df)
print(test_set_accuracy)
Our baseline network achieves a 70% Classification Accuracy on the Test Set.
Test Set Confusion Matrix
Overall Classification Accuracy is very useful, but it can hide what is really going on with the network’s predictions!
As we saw above, our Classification Accuracy for the whole test set was 75%, but it might be that our network is predicting extremely well on Tony Blaire, but struggling with Schroeder as for some reason it is regularly confusing him with Colin Powell. A Confusion Matrix can help us uncover insights like this!
We can create a Confusion Matrix with the below code:
# confusion matrix (percentages)
confusion_matrix = pd.crosstab(predictions_df['predicted_label'], predictions_df['actual_label'], normalize = 'columns')
print(confusion_matrix)
This results in the following output:
actual_label Colin_Powell George_W_Bush Gerhard_Schroeder Tony_Blair
predicted_label
Colin_Powell 0.78 0.08 0 0.11
George_W_Bush 0.11 0.46 0 0.11
Gerhard_Schroeder 0.11 0.23 1 0.22
Tony_Blair 0 0.23 0 0.55
Along the top are our actual classes and down the side are our predicted classes - so counting down the columns we can get the Classification Accuracy (%) for each class, and we can see where it is getting confused.
So, while overall our test set accuracy was 75% - for each individual class we see:
- Colin Powell: 78%
- George W. Bush: 46%
- Gerhard Schroeder: 100%
- Tony Blair: 55%
The insight here is that George W. Bush and Tony Blair are getting confused with other personalities while Colin Powell and Gerhard Schroeder are detected quite well.
Tackling Overfitting With Dropout
Dropout Overview
Dropout is a technique used in Deep Learning primarily to reduce the effects of over-fitting. Over-fitting is where the network learns the patterns of the training data so specifically, that it runs the risk of not generalizing well, and being very unreliable when used to predict on new, unseen data.
Dropout works in a way where, for each batch of observations that is sent forwards through the network, a pre-specified proportion of the neurons in a hidden layer are essentially ignored or deactivated. This can be applied to any number of the hidden layers.
In a full network (i.e. where Dropout is not being applied) each of the combinations of neurons becomes quite specific at what it represents, at least in terms of predicting the output. At a high level, if we were classifying pictures of cats and dogs, there might be some linked combination of neurons that fires when it sees pointy ears and a long tongue. This combination of neurons becomes very tuned into its role in prediction, and it becomes very good at what it does - but as is the definition of overfitting, it becomes too good - it becomes too rigidly aligned with the training data.
If we drop out neurons during training, other neurons need to jump in fill in for this particular role of detecting those features. They essentially have to come in at late notice and cover the ignored neurons job, dealing with that particular representation that is so useful for prediction.
Over time, with different combinations of neurons being ignored for each mini-batch of data - the network becomes more adept at generalizing and thus is less likely to overfit to the training data. Since no particular neuron can rely on the presence of other neurons, and the features with which they represent - the network learns more robust features, and are less susceptible to noise.
Updated Network Architecture
Since we only have one Dense Layer, so we apply Dropout to that layer only. A common proportion to apply (i.e. the proportion of neurons in the layer to be deactivated randomly each pass) is 0.5 or 50%. We will apply this here.
Note that we have added the import of Dropout to required tensorflow package
from tensorflow.keras.layers import Conv2D, MaxPooling2D, Activation, Flatten, Dense, Dropout
model = Sequential()
model.add(Conv2D(filters = 32, kernel_size = (3, 3), padding = 'same', input_shape = (img_width, img_height, num_channels)))
model.add(Activation('relu'))
model.add(MaxPooling2D())
model.add(Conv2D(filters = 32, kernel_size = (3, 3), padding = 'same'))
model.add(Activation('relu'))
model.add(MaxPooling2D())
model.add(Flatten())
model.add(Dense(32))
model.add(Activation('relu'))
model.add(Dropout(0.5))
model.add(Dense(num_classes))
model.add(Activation('softmax'))
Training The Updated Network
We run the exact same code to train this updated network as we did for the baseline network (50 epochs) - the only change is that we modify the filename for the saved network to ensure we have all network files for comparison.
Analysis Of Training Results
With the baseline network we saw very strong overfitting in action. Let us see if the addition of Dropout has helped!

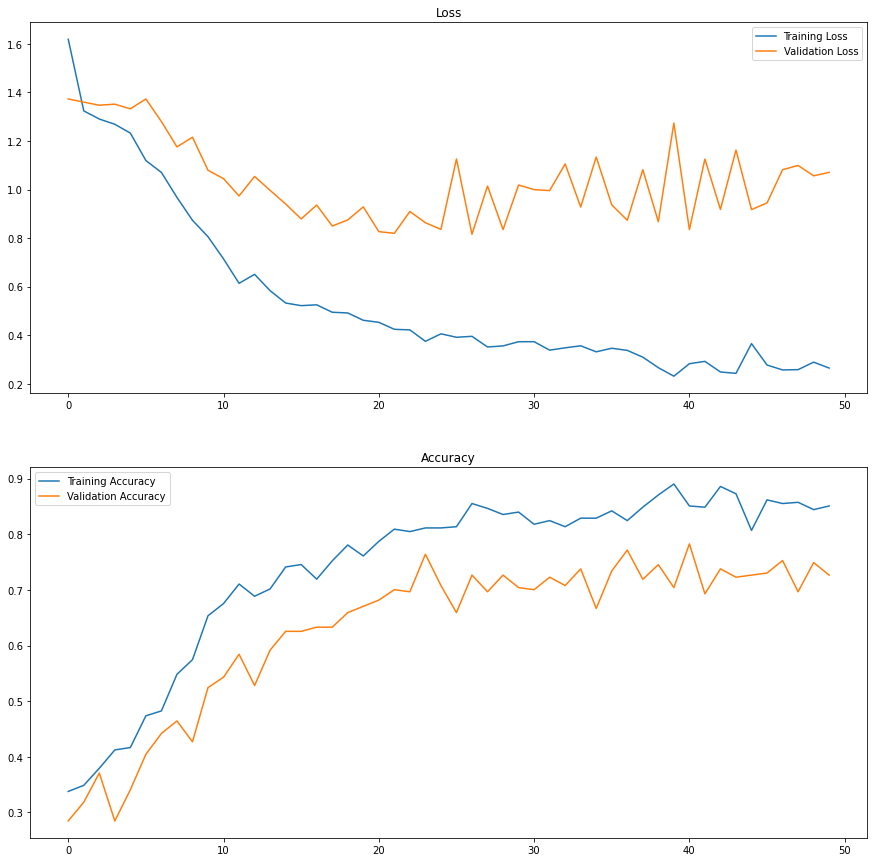

The below image shows the epoch by epoch Loss for both the training set (blue) and the validation set (orange) & the second show the epoch by epoch Classification Accuracy again, for both the training set (blue) and the validation set (orange).
Firstly, we can see a peak Classification Accuracy on the validation set of around 78% which is higher than the 70% we saw for the baseline network.
Secondly, and what we were really looking to see, is that gap between the Classification Accuracy on the training set, and the validation set has been narrowed. The two lines are trending up at more or less the same rate across all epochs of training - and the accuracy on the training set also never reach 100% as it did before. We are indeed seeing a generalization! The addition of Dropout does appear to have remedied the overfitting that we saw in the baseline network.
Test Set Classification Accuracy
Our baseline network achieved a 70% Classification Accuracy on the test set. With the addition of Dropout we saw both a reduction in overfitting, and an increased validation set accuracy. On the test set, we again see an increase vs. the baseline, with an 66% Classification Accuracy.
Test Set Confusion Matrix
As mentioned above, while overall Classification Accuracy is very useful, but it can hide what is really going on with the network’s predictions!
The standout insight for the baseline network was that Bananas has only a 20% Classification Accuracy, very frequently being confused with Lemons. It will be interesting to see if the extra generalisation forced upon the network with the application of Dropout helps this.
Running the same code from the baseline section on results for our updated network, we get the following output:
actual_label Colin_Powell George_W_Bush Gerhard_Schroeder Tony_Blair
predicted_label
Colin_Powell 0.67 0.09 0 0.00
George_W_Bush 0.08 0.54 0 0.00
Gerhard_Schroeder 0.08 0.18 1 0.29
Tony_Blair 0.16 0.18 0 0.71
Along the top are our actual classes and down the side are our predicted classes - so counting down the columns we can get the Classification Accuracy (%) for each class, and we can see where it is getting confused.
So, while overall our test set accuracy was 66% - for each individual class we see:
- Colin Powell: 67%
- George W. Bush: 54%
- Gerhard Schroeder: 100%
- Tony Blair: 71%
All classes here are being predicted at least as good as with the baseline network. Still George W. Bush: is the lowest of all classes, but a significant improvement over the baseline network!
Image Augmentation
Image Augmentation Overview
Image Augmentation is a concept in Deep Learning that aims to not only increase predictive performance, but also to increase the robustness of the network through regularization.
Instead of passing in each of the training set images as it stands, with Image Augmentation we pass in many transformed versions of each image. This results in increased variation within our training data (without having to explicitly collect more images) meaning the network has a greater chance to understand and learn the objects we’re looking to classify, in a variety of scenarios.
Common transformation techniques are:
- Rotation
- Horizontal/Vertical Shift
- Shearing
- Zoom
- Horizontal/Vertical Flipping
- Brightness Alteration
When applying Image Augmentation using Keras’ ImageDataGenerator class, we do this “on-the-fly” meaning the network does not actually train on the original training set image, but instead on the generated/transformed versions of the image - and this version changes each epoch. In other words - for each epoch that the network is trained, each image will be called upon, and then randomly transformed based upon the specified parameters - and because of this variation, the network learns to generalize a lot better for many different scenarios.
Implementing Image Augmentation
We apply the Image Augmentation logic into the ImageDataGenerator class that exists within our Data Pipeline.
It is important to note is that we only ever do this for our training data, we don’t apply any transformation on our validation or test sets. The reason for this is that we want our validation & test data be static, and serve us better for measuring our performance over time. If the images in these set kept changing because of transformations it would be really hard to understand if our network was actually improving, or if it was just a lucky set of validation set transformations that made it appear that is was performing better!
When setting up and training the baseline & Dropout networks - we used the ImageGenerator class for only one thing, to rescale the pixel values. Now we will add in the Image Augmentation parameters as well, meaning that as images flow into our network for training the transformations will be applied.
In the code below, we add these transformations in and specify the magnitudes that we want each applied:
# image generators
training_generator = ImageDataGenerator(rescale = 1./255,
rotation_range = 20,
width_shift_range = 0.2,
height_shift_range = 0.2,
zoom_range = 0.1,
horizontal_flip = True,
brightness_range = (0.5,1.5),
fill_mode = 'nearest')
validation_generator = ImageDataGenerator(rescale = 1./255)
We apply a rotation_range of 20. This is the degrees of rotation, and it dictates the maximum amount of rotation that we want. In other words, a rotation value will be randomly selected for each image, each epoch, between negative and positive 20 degrees, and whatever is selected, is what will be applied.
We apply a width_shift_range and a height_shift_range of 0.2. These represent the fraction of the total width and height that we are happy to shift - in other words we’re allowing Keras to shift our image up to 20% both vertically and horizonally.
We apply a zoom_range of 0.1, meaning a maximum of 10% inward or outward zoom.
We specify horizontal_flip to be True, meaning that each time an image flows in, there is a 50/50 chance of it being flipped.
We specify a brightness_range between 0.5 and 1.5 meaning our images can become brighter or darker.
Finally, we have fill_mode set to “nearest” which will mean that when images are shifted and/or rotated, we’ll just use the nearest pixel to fill in any new pixels that are required - and it means our images still resemble the scene, generally speaking!
Updated Network Architecture
Our network will be the same as the baseline network. We will not apply Dropout here to ensure we can understand the true impact of Image Augmentation for our task.
Training The Updated Network
We run the exact same code to train this updated network as we did for the baseline network (50 epochs).
Analysis Of Training Results

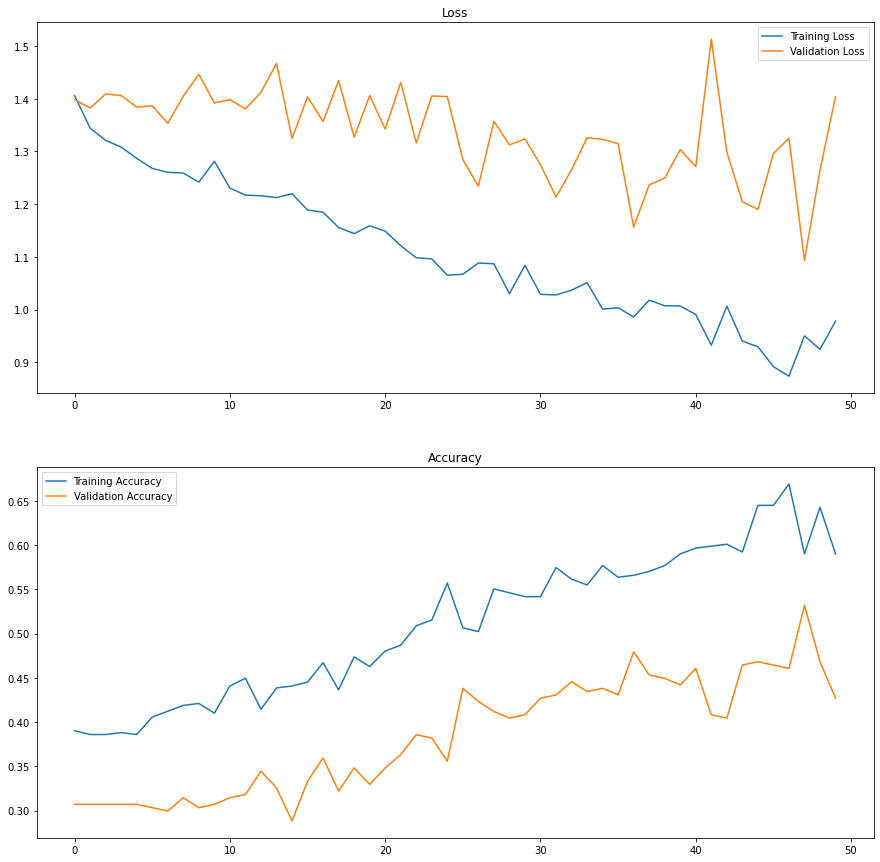

The first image shows the epoch by epoch Loss for both the training set (blue) and the validation set (orange). The second shows the epoch by epoch Classification Accuracy, for both the training set (blue) and the validation set (orange).
Firstly, we can see a peak Classification Accuracy on the validation set of around 65% which is lower than the 70% we saw for the baseline network, and definitely lower than the 78% we saw for the network with Dropout added.
Secondly, and what we were again really looking to see, is that gap between the Classification Accuracy on the training set, and the validation set has inceased again. The two lines are trending up at more or less the same rate across all epochs of training but the gap between the 2 stays! Some more tweaking of the augmantation parameters are needed to get higher training accuracy and getting back to dropout would eliminate the gap.
Test Set Classification Accuracy
Our baseline network achieved a 55% Classification Accuracy on the test set, and our network with Dropout applied achieved 66%. On the test set, we see an drop versus the Dropout, with a 33% Classification Accuracy.
Test Set Confusion Matrix
Running the same code from the baseline section on results for our updated network, we get the following output:
actual_label Colin_Powell George_W_Bush Gerhard_Schroeder Tony_Blair
predicted_label
Colin_Powell 0.38 0.17 0 0.4
George_W_Bush 0.38 0.17 0 0.2
Gerhard_Schroeder 0.08 0.25 1 0.2
Tony_Blair 0.15 0.42 0 0.2
Along the top are our actual classes and down the side are our predicted classes - so counting down the columns we can get the Classification Accuracy (%) for each class, and we can see where it is getting confused.
So, while overall our test set accuracy was 93% - for each individual class we see:
- Colin Powell: 38%
- George W. Bush: 17%
- Gerhard Schroeder: 100%
- Tony Blair: 20%
All classes here are being predicted less accurately when compared to the baseline network. Again, some fine-tuning of augmentation parameters need to be done.
Hyper-Parameter Tuning
Keras Tuner Overview
The addition of Dropout boosted both performance and robustness while Image Augmentation did not do much good. But there is one thing we’ve not tinkered with yet, and something that could have a big impact on how well the network learns to find and utilise important features for classifying our fruits - and that is the network architecture!
So far, we’ve just used 2 convolutional layers, each with 32 filters, and we’ve used a single Dense layer, also, just by coincidence, with 32 neurons - and we admitted that this was just a place to start, our baseline.
One way for us to figure out if there are better architectures, would be to just try different things. Maybe we just double our number of filters to 64, or maybe we keep the first convolutional layer at 32, but we increase the second to 64.Perhaps we put a whole lot of neurons in our hidden layer, and then, what about things like our use of Adam as an optimizer, is this the best one for our particular problem, or should we use something else?
We could start testing all of these things, and noting down performances, but that would be quite messy. Here we will instead utilize Keras Tuner.
At a high level, with Keras Tuner, we will ask it to test, a whole host of different architecture and parameter options, based upon some specifications that we put in place. It will run some tests, and return us all sorts of interesting summary statistics, and of course information about what worked best.
Our data pipeline will remain the same as it was when applying Image Augmentation. The code below shows this, as well as the extra packages we need to load for Keras-Tuner.
# import the required python libraries
from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import Conv2D, MaxPooling2D, Activation, Flatten, Dense, Dropout
from tensorflow.keras.preprocessing.image import ImageDataGenerator
from tensorflow.keras.callbacks import ModelCheckpoint
from keras_tuner.tuners import RandomSearch
from keras_tuner.engine.hyperparameters import HyperParameters
import os
# data flow parameters
training_data_dir = 'data/training'
validation_data_dir = 'data/validation'
batch_size = 32
img_width = 128
img_height = 128
num_channels = 3
num_classes = 6
# image generators
training_generator = ImageDataGenerator(rescale = 1./255)
validation_generator = ImageDataGenerator(rescale = 1./255)
# image flows
training_set = training_generator.flow_from_directory(directory = training_data_dir,
target_size = (img_width, img_height),
batch_size = batch_size,
class_mode = 'categorical')
validation_set = validation_generator.flow_from_directory(directory = validation_data_dir,
target_size = (img_width, img_height),
batch_size = batch_size,
class_mode = 'categorical')
Application Of Keras Tuner
Here we specify what we want Keras Tuner to test, and how we want it to test it. We put our network architecture into a function with a single parameter called hp (hyperparameter). We then make use of several in-build bits of logic to specify what we want to test. In the code below we test for:
- Convolutional Layer Count - Between 1 & 4
- Convolutional Layer Filter Count - Between 32 & 256 (Step Size 32)
- Dense Layer Count - Between 1 & 4
- Dense Layer Neuron Count - Between 32 & 256 (Step Size 32)
- Application Of Dropout - Yes or No
- Optimizer - Adam or RMSProp
# network architecture
def build_model(hp):
model = Sequential()
model.add(Conv2D(filters = hp.Int("Input_Conv_Filters", min_value = 32, max_value = 256, step = 32), kernel_size = (3, 3), padding = 'same', input_shape = (img_width, img_height, num_channels)))
model.add(Activation('relu'))
model.add(MaxPooling2D())
for i in range(hp.Int("n_Conv_Layers", min_value = 1, max_value = 3, step = 1)):
model.add(Conv2D(filters = hp.Int(f"Conv_{i}_Filters", min_value = 32, max_value = 256, step = 32), kernel_size = (3, 3), padding = 'same'))
model.add(Activation('relu'))
model.add(MaxPooling2D())
model.add(Flatten())
for j in range(hp.Int("n_Dense_Layers", min_value = 1, max_value = 4, step = 1)):
model.add(Dense(hp.Int(f"Dense_{j}_Neurons", min_value = 32, max_value = 256, step = 32)))
model.add(Activation('relu'))
if hp.Boolean("Dropout"):
model.add(Dropout(0.5))
model.add(Dense(num_classes))
model.add(Activation('softmax'))
# compile network
model.compile(loss = 'categorical_crossentropy',
optimizer = hp.Choice("Optimizer", values = ['adam', 'RMSProp']),
metrics = ['accuracy'])
return model
Once we have the testing logic in place - we want to put in place the specifications for the search!
In the code below, we set parameters to:
- Point to the network function with the testing logic (hypermodel)
- Set the metric to optimise for (objective)
- Set the number of random network configurations to test (max_trials)
- Set the number of times to try each tested configuration (executions_per_trial)
- Set the details for the output of logging & results
# search parameters
tuner = RandomSearch(hypermodel = build_model,
objective = 'val_accuracy',
max_trials = 30,
executions_per_trial = 2,
directory = os.path.normpath('C:/'),
project_name = 'presidents-cnn',
overwrite = True)
With the search parameters in place, we now want to put this into action.
In the below code, we:
- Specify the training & validation flows
- Specify the number of epochs for each tested configuration
- Specify the batch size for training
# execute search
tuner.search(x = training_set,
validation_data = validation_set,
epochs = 40,
batch_size = 32)
Depending on how many configurations are to be tested, how many epochs are required for each, and the speed of processing - this can take a long time, but the results will most definitely guide us towards a more optimal architecture!
Updated Network Architecture
Based upon the tested network architectures, the best in terms of validation accuracy was one that contains 1 Convolutional Layer. This has 128 filters. The layer has an accompanying MaxPooling Layer (this wasn’t tested). The network then has 2 Dense (Fully Connected) Layers with 96 and 32 neurons each with Dropout applied - followed by our output layer. The chosen optimizer was Adam.
# network architecture
model = Sequential()
model.add(Conv2D(filters=32, kernel_size=(3,3), padding='same', input_shape=(img_width, img_height, num_channels)))
model.add(Activation('relu'))
model.add(MaxPooling2D())
model.add(Conv2D(filters=128, kernel_size=(3,3), padding='same')) # Conv_0_Filters: 128
model.add(Activation('relu'))
model.add(MaxPooling2D())
model.add(Flatten())
model.add(Dense(32))
model.add(Activation('relu'))
model.add(Dropout(0.5))
model.add(Dense(96))
model.add(Activation('relu'))
model.add(Dropout(0.5))
model.add(Dense(num_classes))
model.add(Activation('softmax'))
# compile network
model.compile(loss = 'categorical_crossentropy',
optimizer = 'adam',
metrics = ['accuracy'])
The below shows us more clearly our optimised architecture:
_________________________________________________________________
Layer (type) Output Shape Param #
=================================================================
conv2d_4 (Conv2D) (None, 128, 128, 32) 896
_________________________________________________________________
activation_7 (Activation) (None, 128, 128, 32) 0
_________________________________________________________________
max_pooling2d_4 (MaxPooling2 (None, 64, 64, 32) 0
_________________________________________________________________
conv2d_5 (Conv2D) (None, 64, 64, 128) 36992
_________________________________________________________________
activation_8 (Activation) (None, 64, 64, 128) 0
_________________________________________________________________
max_pooling2d_5 (MaxPooling2 (None, 32, 32, 128) 0
_________________________________________________________________
flatten_1 (Flatten) (None, 131072) 0
_________________________________________________________________
dense_3 (Dense) (None, 32) 4194336
_________________________________________________________________
activation_9 (Activation) (None, 32) 0
_________________________________________________________________
dropout_1 (Dropout) (None, 32) 0
_________________________________________________________________
dense_4 (Dense) (None, 96) 3168
_________________________________________________________________
activation_10 (Activation) (None, 96) 0
_________________________________________________________________
dropout_2 (Dropout) (None, 96) 0
_________________________________________________________________
dense_5 (Dense) (None, 4) 388
_________________________________________________________________
activation_11 (Activation) (None, 4) 0
=================================================================
Total params: 4,235,780
Trainable params: 4,235,780
Non-trainable params: 0
_________________________________________________________________
Our optimised architecture has a total of 4.2 million parameters, a step up from 1.1 million in the baseline architecture.
Training The Updated Network
We run the exact same code to train this updated network as we did for the baseline network (50 epochs).
Analysis Of Training Results
The below image shows the same two plots we analysed for the tuned network, the first showing the epoch by epoch Loss for both the training set (blue) and the validation set (orange) & the second show the epoch by epoch Classification Accuracy again, for both the training set (blue) and the validation set (orange).
Unfortunately, we can see a peak Classification Accuracy on the validation set only of around 40%. On top of that,
thereis a huge overfitting.
Test Set Classification Accuracy
Our optimised network, with both Dropout & Image Augmentation in place, scored 78% on the Test Set, again marginally higher than what we had seen from the other networks so far.
Test Set Confusion Matrix
As mentioned each time, while overall Classification Accuracy is very useful, but it can hide what is really going on with the network’s predictions!
Running the same code from the baseline section on results for our updated network, we get the following output:
actual_label Colin_Powell George_W_Bush Gerhard_Schroeder Tony_Blair
predicted_label
Colin_Powell 0.38 0.17 0 0.4
George_W_Bush 0.38 0.17 0 0.2
Gerhard_Schroeder 0.08 0.25 1 0.2
Tony_Blair 0.15 0.42 0 0.2
Along the top are our actual classes and down the side are our predicted classes - so counting down the columns we can get the Classification Accuracy (%) for each class, and we can see where it is getting confused.
So, while overall our test set accuracy was 95% - for each individual class we see:
- Colin Powell: 38%
- George W. Bush: 17%
- Gerhard Schroeder: 100%
- Tony Blair: 20%
All classes here are being predicted at least as accurate or better when compared to the best network so far - so our optimised architecture does appear to have helped!
Transfer Learning With VGG16
Transfer Learning Overview
Transfer Learning is an extremely powerful way for us to utilize pre-built, and pre-trained networks, and apply these in a clever way to solve our specific Deep Learning based tasks. It consists of taking features learned on one problem, and leveraging them on a new, similar problem.
The hope is, that the features which have already been learned will be good enough to differentiate between our new classes, and we’ll save a whole lot of training time (and be able to utilize a network architecture that has potentially already been optimized).
For our Global Major Leaders Classification task we will be utilizing a famous network known as VGG16. It was trained on the famous ImageNet dataset, with over a million images across one thousand different image classes. Everything from goldfish to cauliflowers to bottles of wine, to scuba divers.
If we can get our hands on the fully trained VGG16 model object, built to differentiate between all of those one thousand different image classes, the features that are contained in the layer prior to flattening will be very rich, and could be very useful for predicting all sorts of other images too without having to (a) re-train this entire architecture, which would be computationally, very expensive or (b) having to come up with our very own complex architecture, which we know can take a lot of trial and error to get right!
All the hard work has been done, we just want to “transfer” those “learnings” to our own problem space.
Updated Data Pipeline
Our data pipeline will remain mostly the same as it was when applying our own custom built networks - but there are some subtle changes. In the code below we need to import VGG16 and the custom preprocessing logic that it uses. We also need to send our images in with the size 224 x 224 pixels as this is what VGG16 expects. Otherwise, the logic stays as is.
# import the required python libraries
from tensorflow.keras.applications import VGG16
from tensorflow.keras.models import Model
from tensorflow.keras.layers import Flatten, Dense, Dropout
from tensorflow.keras.preprocessing.image import ImageDataGenerator
from tensorflow.keras.callbacks import ModelCheckpoint
from tensorflow.keras.optimizers import Adam
# data flow parameters
training_data_dir = 'data/training'
validation_data_dir = 'data/validation'
batch_size = 32
img_width = 224
img_height = 224
num_channels = 3
num_classes = 4
# image generators
training_generator = ImageDataGenerator(rescale=1./255,
rotation_range=20,
width_shift_range=0.2,
height_shift_range=0.2,
zoom_range=0.1,
horizontal_flip=True,
brightness_range=(0.5,1.5),
fill_mode='nearest')
validation_generator = ImageDataGenerator(rescale=1./255)
# image flows
training_set = training_generator.flow_from_directory(directory = training_data_dir,
target_size= (img_width, img_height),
batch_size=batch_size,
class_mode= 'categorical')
validation_set = validation_generator.flow_from_directory(directory = validation_data_dir,
target_size= (img_width, img_height),
batch_size=batch_size,
class_mode= 'categorical')

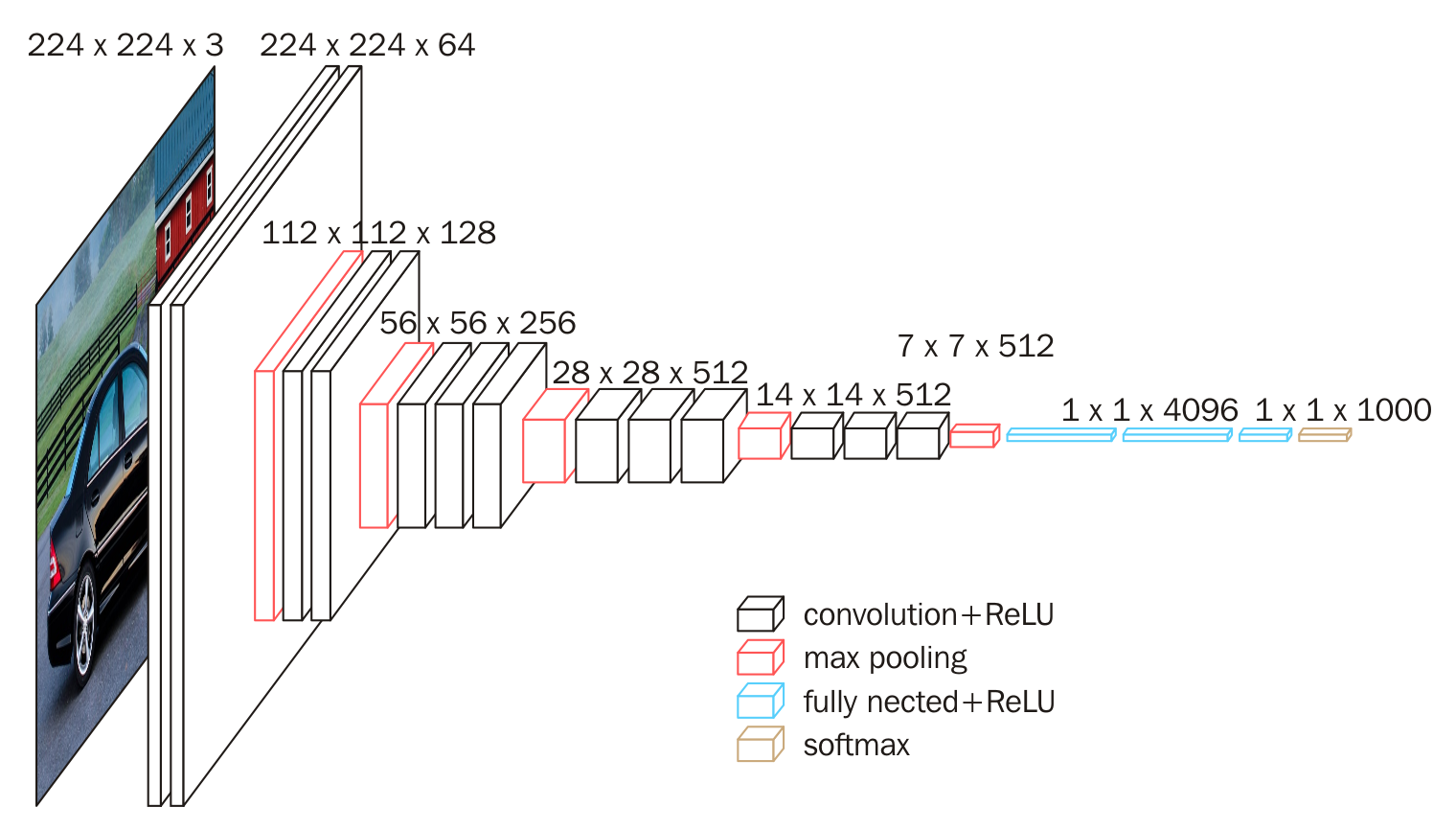

Network Architecture
Keras makes the use of VGG16 very easy. We will download the bottom of the VGG16 network (everything up to the Dense Layers) and add in what we need to apply the top of the model to our politian classes.
We then need to specify that we do not want the imported layers to be re-trained, we want their parameters values to be frozen.
The original VGG16 network architecture contains two massive Dense Layers near the end, each with 4096 neurons. Since our task of classiying 4 people is more simplistic than the original 1000 ImageNet classes, we reduce this down and instead implement two Dense Layers with 224 and 64 neurons, followed by our output layer.
# network architecture
# Load VGG16 as the base model
base_model = VGG16(weights='imagenet', include_top=False, input_shape=(img_width, img_height, num_channels))
# Freeze the layers of VGG16
for layer in base_model.layers:
layer.trainable = False
# Custom layers
x = Flatten()(base_model.output)
x = Dense(224, activation='relu')(x)
x = Dropout(0.5)(x)
x = Dense(64, activation='relu')(x)
x = Dropout(0.5)(x)
predictions = Dense(num_classes, activation='softmax')(x)
# Final model
model = Model(inputs=base_model.input, outputs=predictions)
# Compile the model
learning_rate = 0.0001
model.compile(optimizer=Adam(learning_rate=learning_rate),
loss='categorical_crossentropy',
metrics=['accuracy'])
# Model summary
model.summary()
The below shows us our final architecture:
_________________________________________________________________
Layer (type) Output Shape Param #
=================================================================
input_1 (InputLayer) [(None, 224, 224, 3)] 0
_________________________________________________________________
block1_conv1 (Conv2D) (None, 224, 224, 64) 1792
_________________________________________________________________
block1_conv2 (Conv2D) (None, 224, 224, 64) 36928
_________________________________________________________________
block1_pool (MaxPooling2D) (None, 112, 112, 64) 0
_________________________________________________________________
block2_conv1 (Conv2D) (None, 112, 112, 128) 73856
_________________________________________________________________
block2_conv2 (Conv2D) (None, 112, 112, 128) 147584
_________________________________________________________________
block2_pool (MaxPooling2D) (None, 56, 56, 128) 0
_________________________________________________________________
block3_conv1 (Conv2D) (None, 56, 56, 256) 295168
_________________________________________________________________
block3_conv2 (Conv2D) (None, 56, 56, 256) 590080
_________________________________________________________________
block3_conv3 (Conv2D) (None, 56, 56, 256) 590080
_________________________________________________________________
block3_pool (MaxPooling2D) (None, 28, 28, 256) 0
_________________________________________________________________
block4_conv1 (Conv2D) (None, 28, 28, 512) 1180160
_________________________________________________________________
block4_conv2 (Conv2D) (None, 28, 28, 512) 2359808
_________________________________________________________________
block4_conv3 (Conv2D) (None, 28, 28, 512) 2359808
_________________________________________________________________
block4_pool (MaxPooling2D) (None, 14, 14, 512) 0
_________________________________________________________________
block5_conv1 (Conv2D) (None, 14, 14, 512) 2359808
_________________________________________________________________
block5_conv2 (Conv2D) (None, 14, 14, 512) 2359808
_________________________________________________________________
block5_conv3 (Conv2D) (None, 14, 14, 512) 2359808
_________________________________________________________________
block5_pool (MaxPooling2D) (None, 7, 7, 512) 0
_________________________________________________________________
flatten (Flatten) (None, 25088) 0
_________________________________________________________________
dense (Dense) (None, 224) 5619936
_________________________________________________________________
dropout (Dropout) (None, 224) 0
_________________________________________________________________
dense_1 (Dense) (None, 64) 14400
_________________________________________________________________
dropout_1 (Dropout) (None, 64) 0
_________________________________________________________________
dense_2 (Dense) (None, 4) 260
=================================================================
Total params: 20,349,284
Trainable params: 5,634,596
Non-trainable params: 14,714,688
_________________________________________________________________
Our VGG16 architecture has a total of 20.3 million parameters, much bigger than what we have built so far. Of this, 14.7 million parameters are frozen, and 5.6 million parameters will be updated during each iteration of back-propagation, and these are going to be figuring out exactly how to use those frozen parameters that were learned from the ImageNet dataset, to predict our classes of faces.
Training The Network
We run the exact same code to train this updated network as we did for the baseline network. Transfer Learning is a much more computationally expensive training process but wae want to stick to the 50 epochs.
Analysis Of Training Results
As we again saved our training process to the history object, we can now analyse & plot the performance (Classification Accuracy, and Loss) of the updated network epoch by epoch.

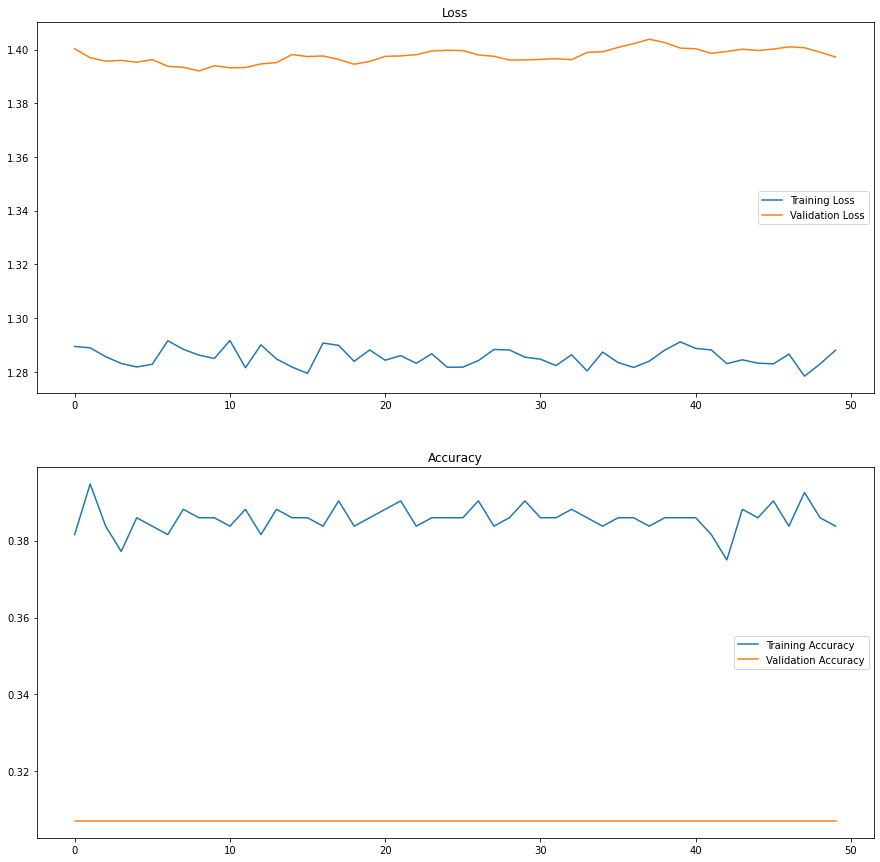

The below image shows the same two plots we analysed for the tuned network, the first showing the epoch by epoch Loss for both the training set (blue) and the validation set (orange) & the second show the epoch by epoch Classification Accuracy again, for both the training set (blue) and the validation set (orange).
Firstly, we can see a peak Classification Accuracy on the validation set of around 70% which is equal to the highest we have seen from all networks so far.
Test Set Classification Accuracy
Our VGG16 network scored 66% on the Test Set, higher than that of our best custom network.
Test Set Confusion Matrix
As mentioned each time, while overall Classification Accuracy is very useful, but it can hide what is really going on with the network’s predictions!
Our 66% Test Set accuracy at an overall level tells us that there is still room for improvement. Let us see there we lose the majority of accuracy.
Running the same code from the baseline section on results for our updated network, we get the following output:
actual_label Colin_Powell George_W_Bush Gerhard_Schroeder Tony_Blair
predicted_label
Colin_Powell 0.69 0.00 0 0.00
George_W_Bush 0.00 0.50 0 0.00
Gerhard_Schroeder 0.31 0.19 1 0.75
Tony_Blair 0.00 0.31 0 0.25
Along the top are our actual classes and down the side are our predicted classes - so counting down the columns we can get the Classification Accuracy (%) for each class, and we can see where it is getting confused.
For each individual class we see:
- Colin Powell: 69%
- George W. Bush: 50%
- Gerhard Schroeder: 100%
- Tony Blair: 75%
All classes here are being predicted at least as accurate or better when compared to the best custom network!
Overall Results Discussion
We have made some huge strides in terms of making our network’s predictions more accurate, and more reliable on new data.
Our baseline network suffered badly from overfitting - the addition of both Dropout & Image Augmentation elimited this almost entirely.
In terms of Classification Accuracy on the Test Set, we saw:
- Baseline Network: 70%
- Baseline + Dropout: 66%
- Baseline + Image Augmentation: 65%
- Optimised Architecture + Dropout + Image Augmentation: 78%
- Transfer Learning Using VGG16: 66%
Tuning the networks architecture with Keras-Tuner gave us a great boost, but was also very time intensive - however if this time investment results in improved accuracy then it is time well spent.
The use of Transfer Learning with the VGG16 architecture was also a great success. From a business point of view we also need to consider the overheads of (a) storing the much larger VGG16 network file, and (b) any increased latency on inference.
Growth & Next Steps
The proof of concept was successful, we have shown that we can get very accurate predictions albeit on a small number of classes. Transfer Learning has been a big success, and was the best performing network in terms of classification accuracy on the Test Set. It would be worthwhile testing other available pre-trained networks such as ResNet, Inception, and the DenseNet networks.
